Home > Products > Gas solenoid valve > explosion proof AC220V DC24V Brass Cng High Pressure Compressor Solenoid Valve

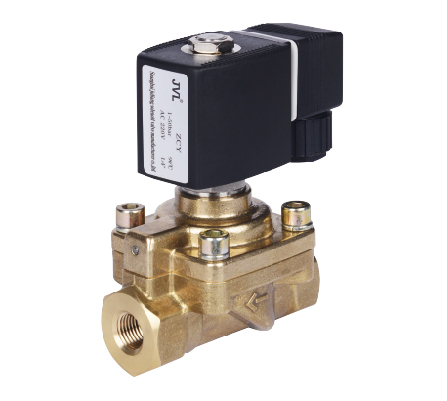

explosion proof AC220V DC24V Brass Cng High Pressure Compressor Solenoid Valve

Product Description

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:277px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:277px}#detail_decorate_root .magic-3{overflow:hidden;width:750px;height:398px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-4{margin-top:0;margin-left:0;width:750px;height:398px}#detail_decorate_root .magic-5{border-bottom-style:solid;border-bottom-color:#bbb;font-family:Roboto;font-size:24px;color:#fff;background-color:#f6170b;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-6{width:446px}#detail_decorate_root .magic-7{overflow:hidden;width:446px;height:400.10290827740494px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:0;margin-left:0;width:446.00000000000006px;height:400.10290827740494px}#detail_decorate_root .magic-9{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-10{text-align:left}#detail_decorate_root .magic-11{font-size:18px}#detail_decorate_root .magic-13{font-size:24px}#detail_decorate_root .magic-14{width:750px;border-collapse:collapse}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:176px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{text-align:center}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:528px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{font-size:16px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:612px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:612px}#detail_decorate_root .magic-21{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:303px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:303px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:550px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:550px}#detail_decorate_root .magic-26{vertical-align:top}#detail_decorate_root .magic-27{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-28{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-29{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:503px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:503px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:530px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:530px}#detail_decorate_root .magic-34{overflow:hidden;width:247.33333333333334px;height:164.88888888888889px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:247px;height:164px}#detail_decorate_root .magic-36{overflow:hidden;width:247.33333333333334px;height:164.22132253711203px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:286px;height:164px}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:280px;height:164px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:400px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:252.32712765957447px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:252.32712765957447px} Products Description

Model Selection notice:
1.Ensure the arrow of valve consistent with the flow of media For 2 way flow choose Electric valve or Pneumatic valve
2.Install Filter screen in front of valve avoiding particles
3.Proper length for DC power line important for normal operation
4.Design control project,Normal close valve as priority.
5.Consult us for Certain Voltage or special function
DN
DN15~25mm
Connection type
Inch G internal thread (NPT can be customized)
Work principle
Pilot diaphragm ,Pilot piston mode
Body material
Brass
Seal material
NBR,FKM P,other option consult us
Suitable media
Liquid,gas, oil etc.
Media temperature
1.-20℃~80℃ 2.-20℃~150℃ or consult us for other option
Ambient temperature
Standard:-20~60℃
Install method
Horizonal installation coil vertical upward(consult us for other option)
Protection class
Plastic sealing:IP65 ,Exm explosion proof mode:IP65

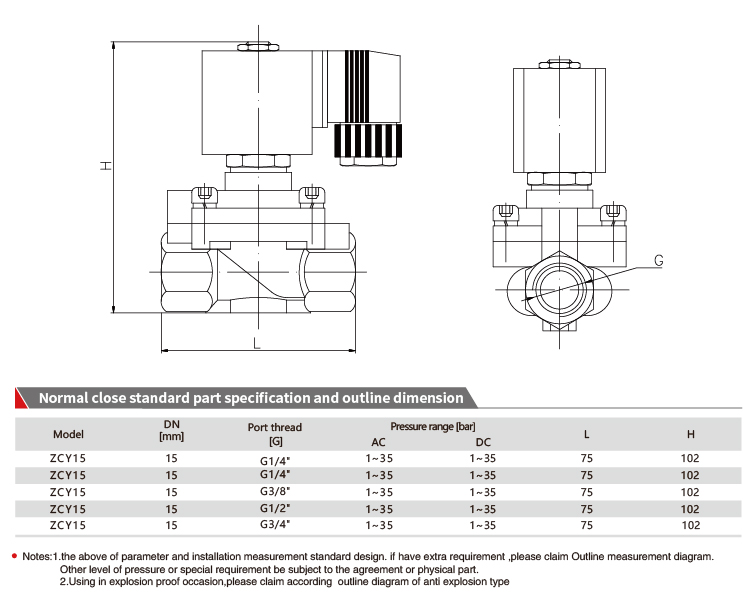

Product Size Related Products Recommended by seller1/8" 1/4" 12v 2way mini miniature Solenoid valve$16.00 - $48.00 / Piece1.0 PiecesZS 1/8 1/4 12V AC220V Waterproof Mini Solenoid valve for water diaphragm solenoid valve$10.00 - $50.00 / Piece1.0 Pieces1/8" 1/4" 12v 2way mini miniature solenoid valve$16.00 - $48.00 / Piece1.0 PiecesZCGL Threaded Flange Steam Thermal oil high temperature solenoid valve$20.00 - $58.00 / Piece1.0 Pieces Certificate Company Introduction Shanghai Juliang Valve Group is located in the core section of Songjiang District Shanghai national economic and technological development zone with a building of 20,000 square meters, a modern high-tech group enterprise, which integrates scientific research, manufacturing, sales and international trade. People in Juliang inherit the traditional Chinese craftsman spirit and absorb Germany's rigorous manufacturing idea. To be the world's top 10 enterprises in the fluid control field is our the vision.we pursue material and the spiritual happiness, and provide customers high quality products . In the past of decades , devoting to researching and exploring the control valves ,we constantly improve our products with an extreme attitude. Therefore, the unique "JVL " brand come out. From digital control valves to intelligent control valves, then to industrial 5.0 era, we are always at the forefront of innovation and change; From universal valves to high temperature and high pressure valves , then from high-end manufacturing to special customization, we are always at the leading line of fluid control valves fields. So far as now, JVL awarded 30 patented technologies and high-tech achievement transformation projects with lot of honors such as "National High-tech Enterprise" and so on. Our products are widely used in diverse fields such as Aerospace, Defense military, Petrochemical, Bio-pharmaceutical, HVAC, etc. Main ranges are Automatic control valves and Automatic products & services for global customers. International Cooperation Packing&Shipping FAQ 1.Are you a factory or trading company? A: We are a factory, we have rich experience for manufacturing more than 10 years.2.Where is your factory located? How can I visit there?
